It is invented by American Engineer Clemans Herchel and named by the Italian physicist Giovanni Venturi. The tapless Venturi tube which has no need of pressure tappings for differential pressure measurement can be effectively used with less pressure drop for flow measurem.

Insertion Vortex Flow Meter Large Diameter Pipes Sino Inst

- Handle it from its outside.

. EzeJector Official Site venturi tube flow calculator october 11th 2018 - venturi tube is used as flow meter in piping system and where venturi effect is required due to the change in diameter from. It is machined according to exacting specifications using high quality materials. Switch on the pump 2.

The apparatus consists of a flow bench from where water can flow to the venture meter. - This is a high quality flow meter. VENTURI-flowmeter EVR2000 for flow measurement in pipelines Designed in accordance with DIN EN ISO 5167-4 Trouble-free measurement points For liquids and gases Very low deposit risk thus suitable for light fibers Highest measurement accuracy through 16 pressure taps Low pressure drop at high measuring accuracy possible use of various measuring instruments for.

Traditionally this is the only Venturi meter flow rate calculation. Of discharge is the ratio of actual flow to the theoretical flow and makes allowances for stream contraction and frictional effects. Timeto calculate the rate offlow 5.

Coefficient of discharge is high. The pressure reading across the venturi is actually higher than the pressure impact on the system. Less changes of getting clogged with sediments 2.

Wait for awhile for stabilization of flow 4. Throat section Typical Venturi meter construction Writing Bernoullis equation between section 1 and 2 we have. This meter also used for dust water too that is a major advantage.

The Venturi flow meter consists of a streamlined contraction and a streamline expansion as shown the diagram. Can be used to measure high flow rates in pipes having diameters in a few meters. Venturi Flow Meter H40b Venturi ﬂ ow meter for use with the Flow Meter Calibration unit H40.

Venturi meter is a measuring or also considered as a meter device that is usually used to measure the flow of a fluid in the pipeA Venturi meter may also be used to increase the velocity of any type fluid in a pipe at any particular point. Venturi meter orifice meter and Pitot tube are widely used head flow meters in the industry. Venturi tubes are available in sizes up to 72 and can pass 25 to 50 more flow than an orifice with the same pressure drop.

Takereading to the heads in the required Piezometersand 6. A range of Venturi meters spanning three diameter ratios and three inlet convergent angles was evaluated across a comprehensive range of multiphase flow conditions in the multiphase flow measurement facility at NEL. Advantages of venturi meters 1.

Ensure that there are no air bubbles trapped inthe piezometers 3. The V-Brass flow meter is available in four throat sizes to cover a wide range of applications. Inside the flow bench a tank is connected to one end of a lever arm.

- Do not damage its inside. Venturi tube flow rate calculator Pipe Flow Calculations. Elevation m If the meter is.

Its behaviour can be predicted perfectly. This unit is produced from a solid brass hex bar and comes with NPT or sweat ends. The following disadvantages of Venturi.

Venturi Meter1 Water Supply Flow meter Stop watch Calculator B. Of a slurry fluid a fluid with suspen-sions or a corrosive fluid. 22 11 22 2212 pV pV z z ρρgg gg Where.

Can be used for measuring flow rates of watergasessuspended solids slurries and dirty liquids. Therefore venturimeters should be installed following the manufacturers guidelines. It basically works on the principle of Bernoullis Theorem.

The direction of flow in the venturi meter should be checked and set up to agree the flow direction. Install the venturi with the flow direction as indicated on the instrument tag. Flow MeasurementbyVenturi Meter Experimental procedures 1.

Venturi Meter is a device in which pressure energy is converted into kinetic energy and it is used for measuring the rate of flow of liquid through pipes. That is the recovered DP can be used to find the flow rate with an expansion flow equation see. Takereadings of volume vs.

It works on the basic principle of Bernoullis Equation. The Pitot-static is often used for measuring the local velocity in pipes or ducts. The Hays VFM series devices are flow meters that operate based on the venturi principle.

It can alsoj measure a liquid which solidifies at low temperatures or a liquid which vaporizes at high. Upstream piping should be as long as needed to provide as uniform a flow profile as is possible given the process Reynolds Number. Hence 3 8 6 5 6 ¼ À Ì.

Venturi Scrubber Design xls Scribd. The Proper Method of Installing a Halmi Venturi Meter 2 Caution. However with the additional downstream pressure tap three flow equations can be produced.

Venturi Meter Design Equations Formulas Calculator. Generally the following guidelines should be followed when installing venturi meters. Here the coefficient of discharge is high.

To prevent clogging of the venturi and ports the lines should be cleaned of all foreign material solder flux pipe scale dirt thread chips etc. The traditional Venturi meter flow rate equation is shown here as equation 2. The venturi meter is very much accurate than the other flow meter like an orifice.

Venturi flow meters like all other types of differential pressure flow meters function on the principles of the Bernoulli equation which states that as the speed of the flow of a fluid increases pressure loss occurs. By employing the continuity equation and Bernoullis principle the volumetric flow rate through the orifice meter can be calculated as described previously for venturi meter. - Install meter in the pipe line so that the Flow Directional Arrow agrees with the direction.

- If improperly installed it must be reinstalled. What is a Venturi Meter. Procedure Let us first define the Venturi Meter and the way it works in order to proceed in the experiment.

The installation of direction can be vertical horizontal or it can be inclined also. Installing a proper venturi meter is the solution to correct operation. The Venturi meters were evaluated in an uninterrupted 4-inch horizontal pipe run without any mixing.

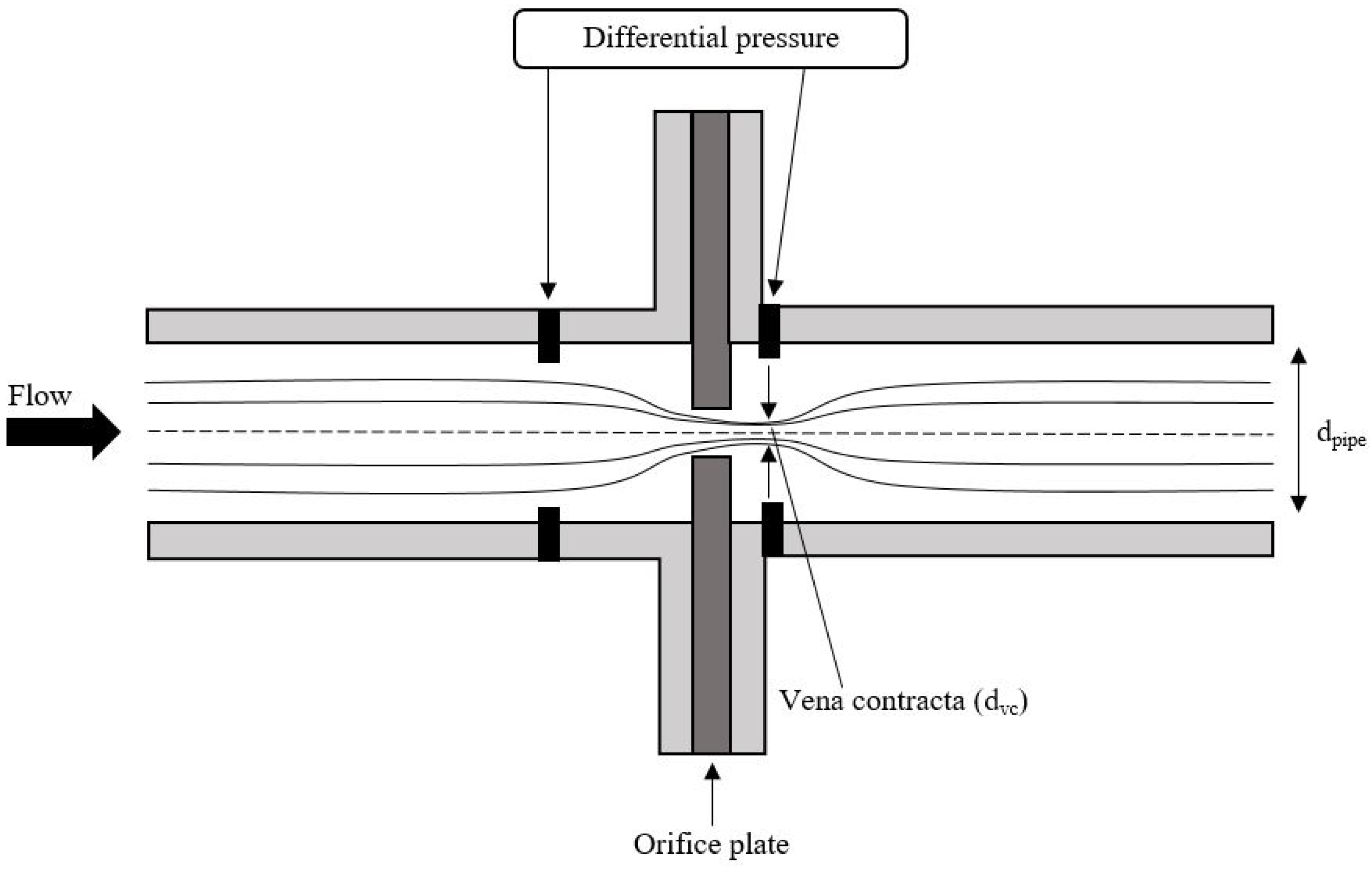

If venturi is equipped with multiple pairs of taps the un-used pairs of taps must be plugged or closed with an isolation valve. Figure 2 shows an orifice meter with the variable position of vena contracta with respect to the orifice plate. Model V-Brass Series is a Venturi style flow meter of the Low Pressure Loss design.
